Cloudflare Engineers Innovate to Overcome Linux Networking Limits

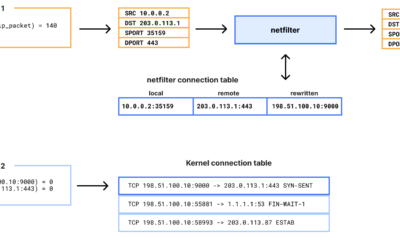

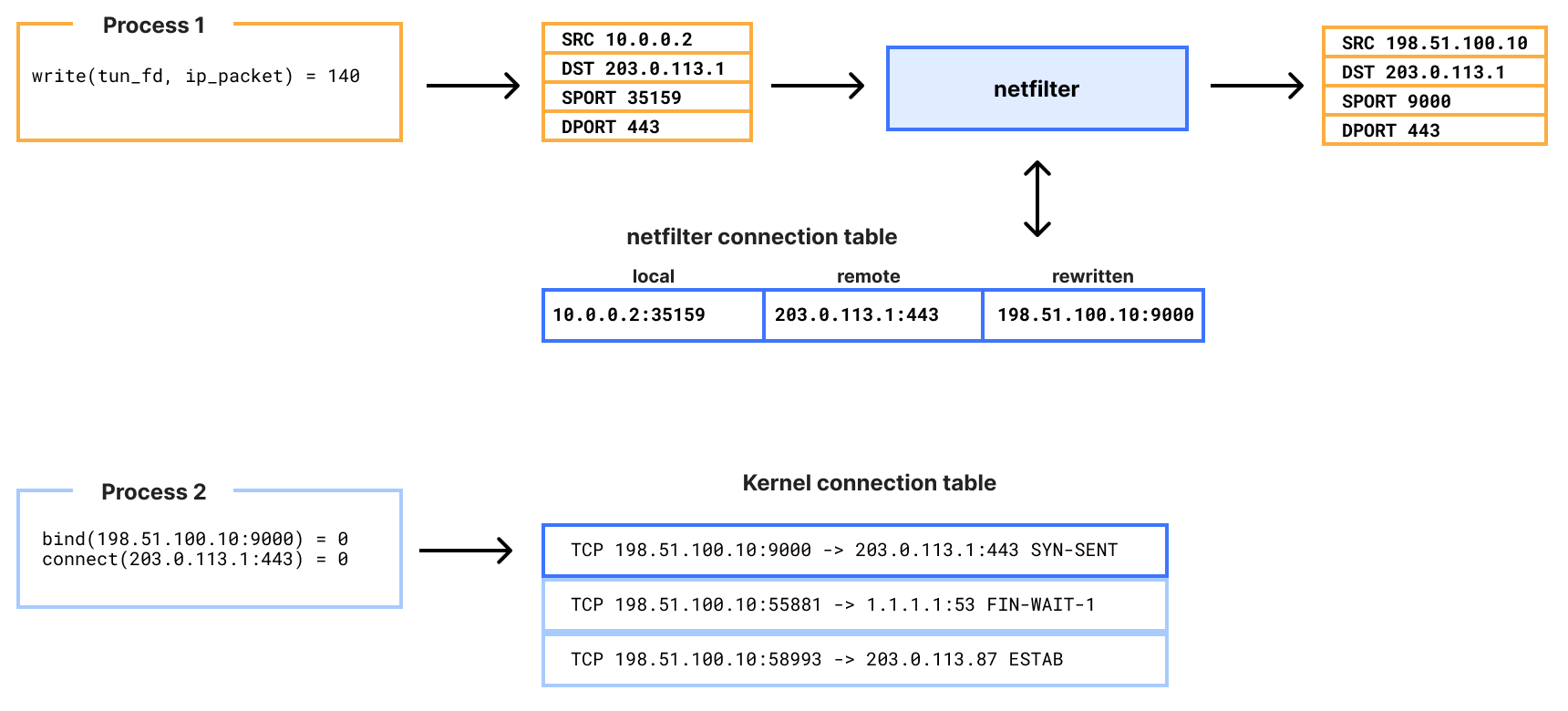

Cloudflare engineers have encountered significant challenges while expanding their use of soft-unicast functionality within their complex network architecture. In a recent blog post, Chris Branch outlined the limitations they faced with the Linux network stack, particularly in relation to the Netfilter connection tracking (conntrack) module and the Linux socket subsystem during packet rewriting.

The issue arose from the need for multiple processes to recognize the same connection in a soft-unicast setup. This requirement conflicts with the inherent design of Linux, which made packet rewriting unfeasible. Initially, the team opted for a local proxy to manage connections, but this approach introduced additional overhead, which was not ideal for their operations.

To tackle these constraints, engineers turned to the TCP_REPAIR socket option in Linux, which is typically used for migrating virtual machine network connections. This feature allows for the description of the entire socket connection state, effectively enabling a ‘repair’ of the connection. By combining this with TCP Fast Open, which accelerates the connection process by skipping the handshake phase using a TFO cookie, they aimed to streamline their network functionality.

Despite these innovative solutions, additional issues emerged, prompting the team to explore an early demultiplexing (demux) approach for further improvements. Ultimately, however, the decision was made to avoid significant alterations to the Linux networking stack. The engineers opted to continue using the local proxy method for terminating TCP connections and redirecting traffic to a local socket, acknowledging that escaping the complexities of the Linux networking stack is not a straightforward endeavor.

This experience underscores the ongoing challenges faced by engineers working with advanced networking configurations. As Cloudflare continues to push the boundaries of network efficiency and redundancy, their commitment to finding effective solutions highlights the intricate balance between innovation and practicality in network engineering.
