Tech Repair: Restoring the Onkyo TX-SR806 Receiver to Life

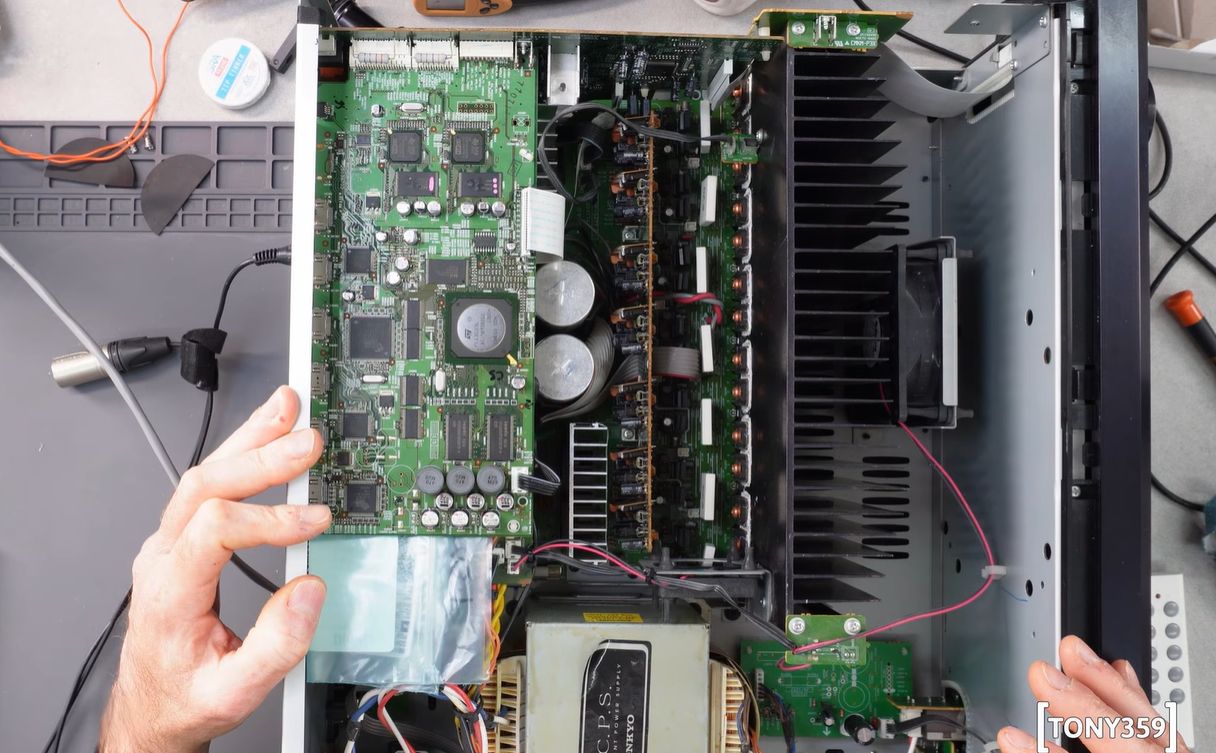

The Onkyo TX-SR806 receiver, launched in 2008, recently underwent a repair process due to multiple faults, notably digital distortion and a persistent hum. The repair was documented by YouTube user Tony359, who first addressed the audio distortion by recapping the printed circuit board (PCB) associated with the digital processing. Despite resolving the initial issue, a second problem—the continuous hum—remained and required further investigation.

Understanding the source of the hum necessitated a thorough examination of the receiver’s schematics. The hum was identified as likely emanating from the mains frequency, suggesting that filtering on the power rails had faltered. To pinpoint the issue, Tony359 checked all voltage rails for interference and noticed ripple on the 10V and 12V rails, while other rails appeared stable. Assistance from the BadCaps forum led to the conclusion that the problem lay with the +15 VA rail, which had significant ripple due to a faulty capacitor on the +22 V rail sourced directly from the transformer.

The design flaw became evident when it was revealed that an 85°C electrolytic capacitor had been placed on the opposite side of the bridge rectifier. This decision proved detrimental, as the capacitor eventually failed, allowing mains hum to pass through to the analog voltage rail and subsequently to the outputs.

Gaining access to the problematic C5662 capacitor was a challenging task, given the compact nature of modern receivers. Full disassembly was required to reach the capacitor, which was visibly bulged despite being a quality Nichicon component. The harsh operating environment contributed to its failure, prompting Tony359 to replace it along with other similarly underspecified capacitors with new 105°C rated electrolytics.

The repair effectively eliminated the mains hum, restoring the Onkyo TX-SR806 to full functionality. This case highlights that even in contemporary audio equipment, issues often stem from electrolytic capacitor failures, a common fault that remains relevant in today’s technology landscape. The successful resolution of these problems underscores the importance of quality components and design considerations in electronic devices.
