Innovative Perpetual Motion Device Reveals Complex Mechanics

A newly acquired perpetual motion device has sparked interest among technology enthusiasts for its intricate design and functionality. Purchased from AliExpress by technology reviewer Big Clive, the device combines a contact-free inductive sensor with a pulsed magnet system to generate movement in a metal ball. Despite its promising design, the device required repairs immediately after unboxing, as it failed to operate due to insufficient power supply.

Upon closer inspection, the device, labeled with the model identifier P-toy-002, operates at a standby current of 10 μA, which increases to 3 A during operation. This significant jump in power consumption aligns with its two primary components: an industrial inductive detector and a substantial electromagnet. The electromagnet is powered by three 10 mF, 35V capacitors, resulting in a system similar to a coilgun.

Device Design and Functionality

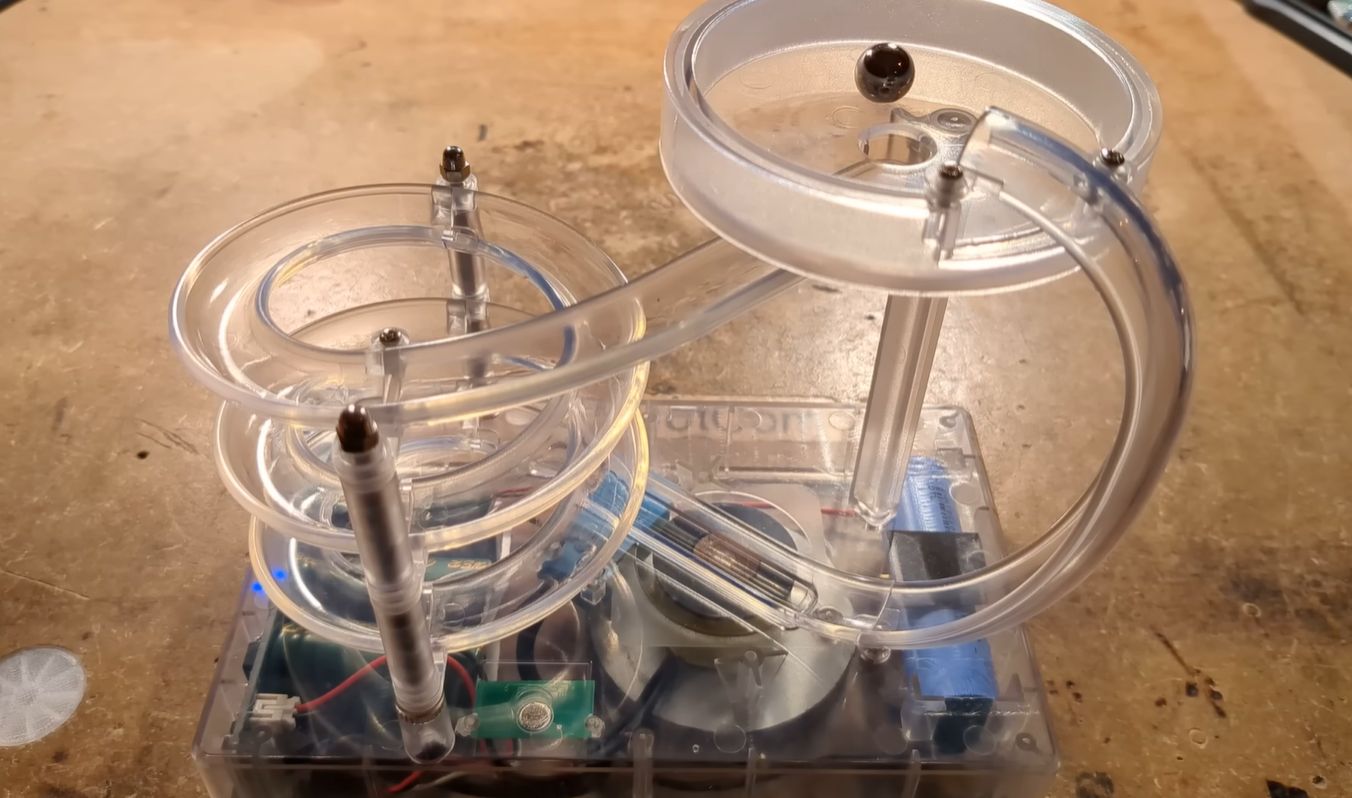

The design of the perpetual motion device includes a fully transparent enclosure, allowing users to observe its inner workings while it operates. The internal circuitry is relatively straightforward, featuring an adjustable electromagnet coil voltage circuit that utilizes a MOSFET to generate the necessary pulsing action. Additionally, a 78L12 regulator converts the coil’s voltage to 12 VDC, which powers the sensor monitored by a microcontroller unit (MCU).

While the device offers a captivating demonstration of technology, it also highlights the challenges associated with such projects. An attempt to obscure the markings on the integrated circuit (IC) package adds a layer of intrigue, prompting curiosity about the origins and intentions behind the device’s design.

Implications for Technology Enthusiasts

The fascination with perpetual motion devices often stems from their implications in physics and engineering. Although true perpetual motion is deemed impossible according to the laws of thermodynamics, devices like this one serve as educational tools, showcasing principles of energy transfer, electromagnetism, and circuit design.

As technology enthusiasts continue to explore and dissect such devices, they contribute to a broader understanding of engineering concepts. The blend of innovation and creativity in this perpetual motion device not only entertains but also educates, making it a noteworthy addition to the realm of experimental technology.

In summary, Big Clive’s exploration of the P-toy-002 demonstrates the ongoing curiosity within the tech community regarding complex mechanical systems and their potential applications.
