El Capitan Supercomputer Simulates Extreme Physics Events with Precision

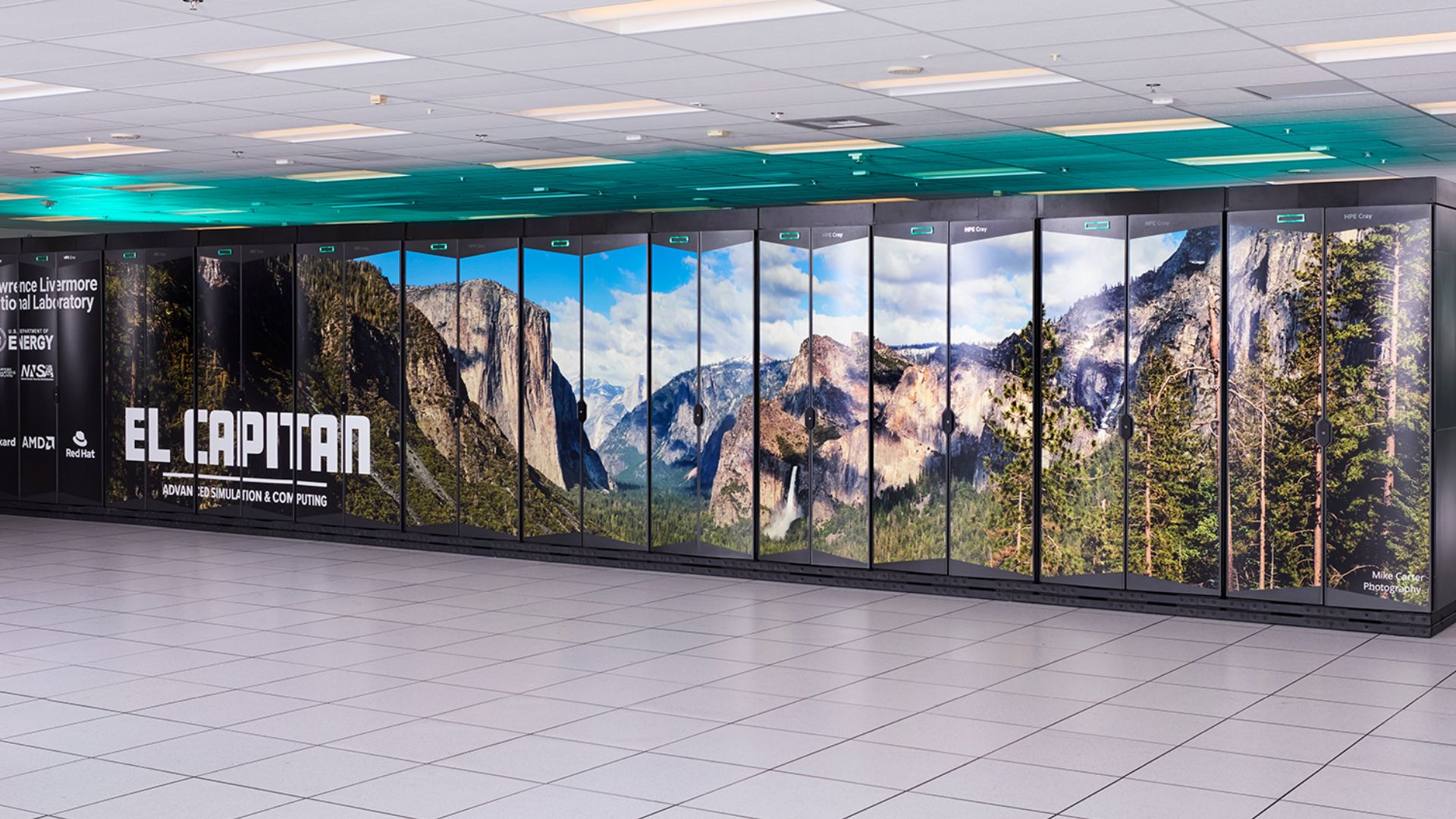

The world’s fastest supercomputer, El Capitan, has achieved a groundbreaking milestone by simulating extreme physics events with remarkable detail. Developed for scientists at the Lawrence Livermore National Laboratory (LLNL) in the United States, El Capitan can now model phenomena such as shock waves and fluid mixing in ways that closely resemble real-world conditions. This advancement marks a significant leap from traditional computing capabilities, which often produced blurred representations of complex simulations.

High-Resolution Simulations of Tin Metal

Researchers utilized El Capitan to investigate the behavior of a tin surface subjected to powerful shock waves and high-speed impacts. According to LLNL physicist Kyle Mackay, “The shocks were strong enough to melt the metal and throw a spray of hot liquified tin, known as ejecta, ahead of the surface.” The supercomputer’s simulations are distinguished by their high fidelity, employing advanced physics models that account for mechanisms such as surface tension and detailed equations-of-state. Notably, its sub-micron mesh resolution allows for the observation of minute details, including the impact of tiny scratches on the metal surface.

The ability to visualize ejecta and other phenomena in such detail is essential for advancing real-world applications across various fields, including physics, national defense, and fusion energy research.

Understanding the Kelvin-Helmholtz Instability

The team also leveraged LLNL‘s multiphysics code MARBL to explore the Kelvin-Helmholtz instability, a phenomenon arising when two fluid layers of different densities interact. This effect can be likened to wind creating waves on water and becomes increasingly turbulent under extreme conditions, such as shockwaves or explosions. The researchers developed a model in which a shockwave interacts with a slight ripple at the boundary between two materials, resulting in intense mixing and the formation of vortex-like patterns.

Using El Capitan, the team tracked physics through an impressive 107 billion calculation points, powered by more than 8,000 AMD GPUs. The outcome was a time-lapse of fluid behavior under intense energy conditions, revealing intricate shear and shock patterns that not only mirror real-world observations but, in some instances, exceed what is possible in physical experiments.

As noted by researcher Rob Rieben, “Experiments are the ultimate arbiter of physical truth, but can be difficult to extract necessary data from. High-fidelity simulations let us probe aspects of an experiment in a virtual manner that would not be possible to access in a real experiment.”

Breaking New Ground in Simulation Technology

El Capitan enables researchers to conduct high-resolution simulations that directly capture complex physical processes. This capability reduces reliance on simplified models and assumptions, offering a more accurate representation of physical phenomena. With approximately 20 times more power than its predecessor, Sierra, El Capitan allows researchers to run simulations more frequently—about once an hour compared to once a day—and study details that are twenty times smaller.

The enhanced capabilities of El Capitan are expected to facilitate more precise studies, accelerate testing, and generate valuable insights across various fields, including physics, defense, and energy research. As researchers continue to explore the complexities of our universe, El Capitan stands as a powerful scientific instrument, paving the way for advancements that could reshape our understanding of extreme physical events.
